Wallmount Case use cases: surveillance / low-voltage / edge compute

You don’t always need a full rack room. Sometimes you just need a tough wall box that holds a board, a switch, maybe a small GPU, and stays out of the way. That’s the Wandgehäuse lane—close to the sensors, quick to service, friendly to tight closets. Below I’ll map real-world surveillance, low-voltage/structured wiringund edge compute rollouts, with one grab-and-go table and plain tips you can actually use.

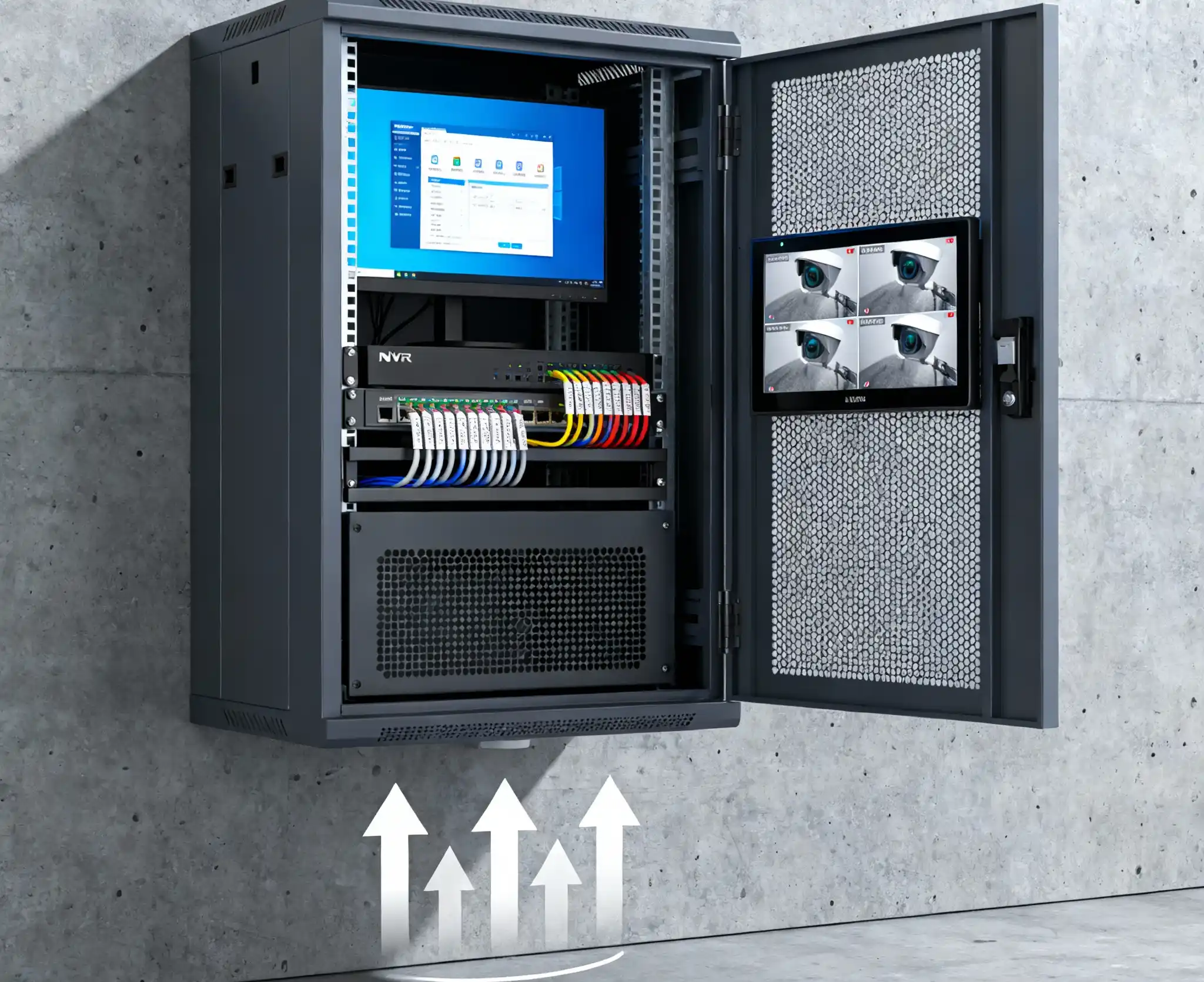

Wallmount case for surveillance NVR / PoE / edge analytics

CCTV isn’t only “cameras + hope.” Put compute near the camera cluster, trim backhaul traffic, and keep recording if the WAN coughs. A wallmount chassis beside the patch panel lets you drop in an NVR or a compact Computergehäuse Server with a PoE switch and on-device analytics. Alerts land faster, and footage keeps rolling even during link blips.

• Typical stack: uATX/mini-ITX board, SSD for OS, HDDs for footage, PoE switch, tidy cable guides.
• Why wall, not floor rack: guard shacks, retail back rooms, schools, construction sites—space is tiny, and you want “mount and go.”
• Serviceability: swing-door or front-access panels win; label the uplink and the camera trunks.
• Quiet hours? Big slow fans beat small loud ones, always.

Useful anchors on your site:

• Gehäuse für Wandmontage
• Server-PC-Gehäuse
• Computergehäuse Server

Surveillance deployment checklist (field-friendly)

• Size PoE power with headroom; cameras multiply later, trust me.
• Keep airflow bottom-to-top or front-to-back; don’t choke fans with cables.
• Dust filters for warehouses; check monthly.
• OOB path (LTE stick or mgmt NIC) for “remote hands.”
• Lockable door + tamper screws where public can touch.
• Time sync and retention policy set before go-live, not after.

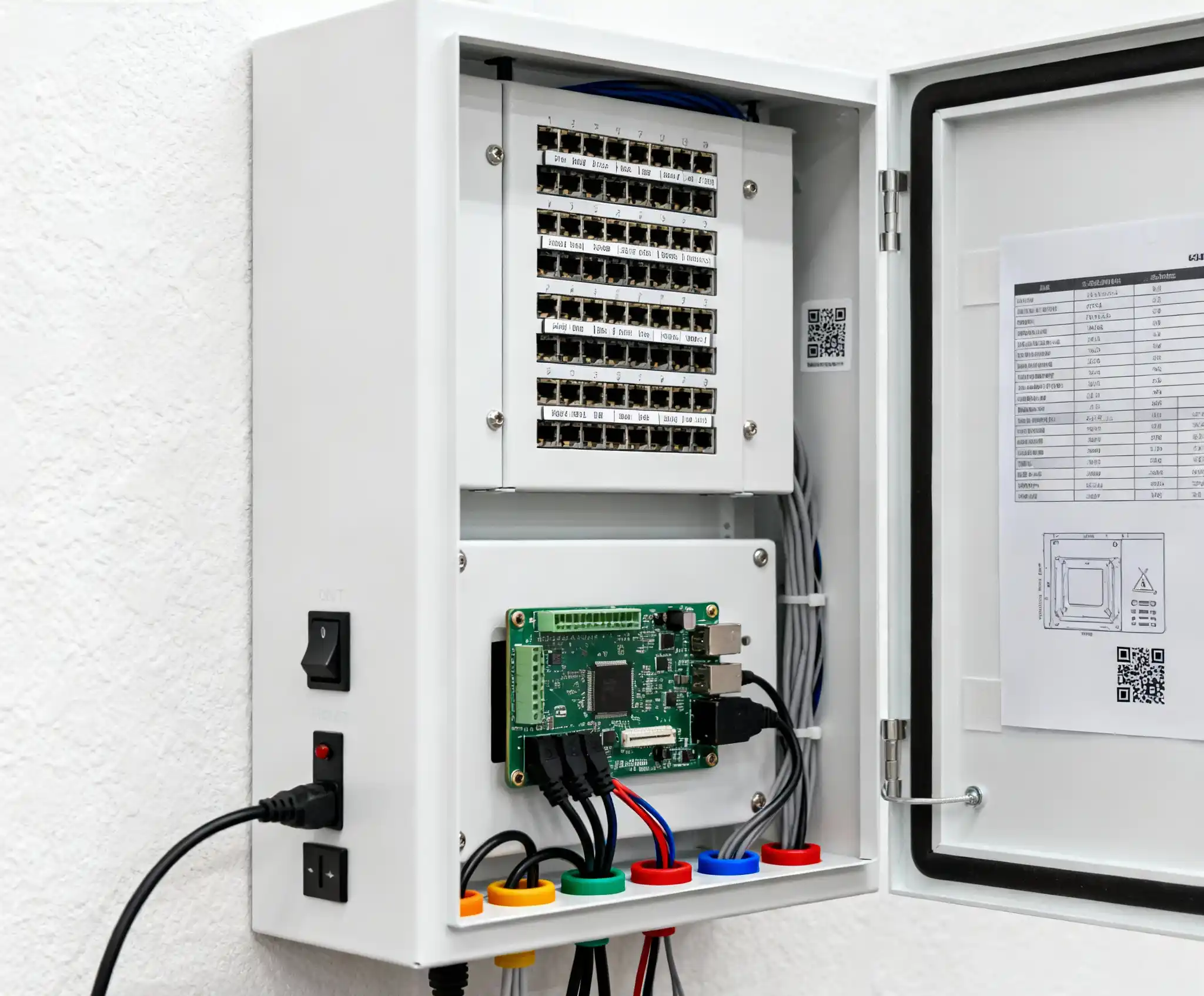

Low-voltage / structured wiring wallmount enclosure (weak-current closet)

Low-voltage closets beg for order: gateway, short-depth switch, patch panel, controller, maybe an ITX node. A wallmount cabinet keeps the weak-current side isolated and clean, so the electrician and the network tech don’t trip over each other.

• Good fit: smart buildings, MDUs, classrooms, cafés, clinics.
• What to mount: ITX control board, tiny NAS, short-depth switch, cable manager, DIN power (if required).
• Why customers like it: lower MTTR, safer cable handling, simple handover between trades.

Explore onsite categories: ITX-Gehäuse.

Low-voltage wiring notes (the “dont-learn-the-hard-way” bits)

• Separate mains and low-voltage; use proper pass-throughs/grommets.
• Leave a service loop; short leads get yanked and die.
• Patch panel labeling saves hours later; print labels, not marker scribbles.
• QR a tiny run-sheet inside the door (port map, ISP info, site ID).
• Unmanaged is fine only when truly fine; otherwise go managed for VLANs and PoE watch-dogs.

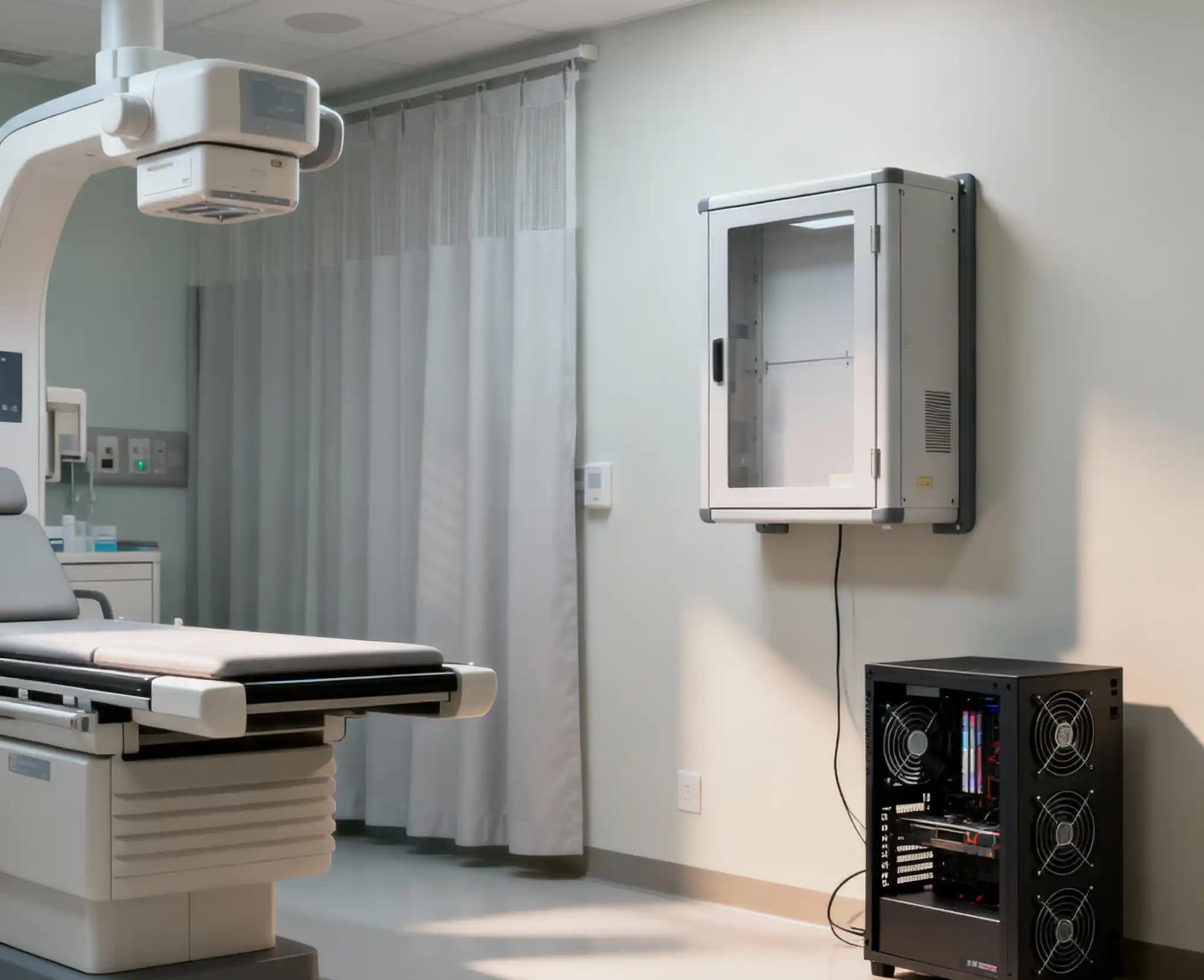

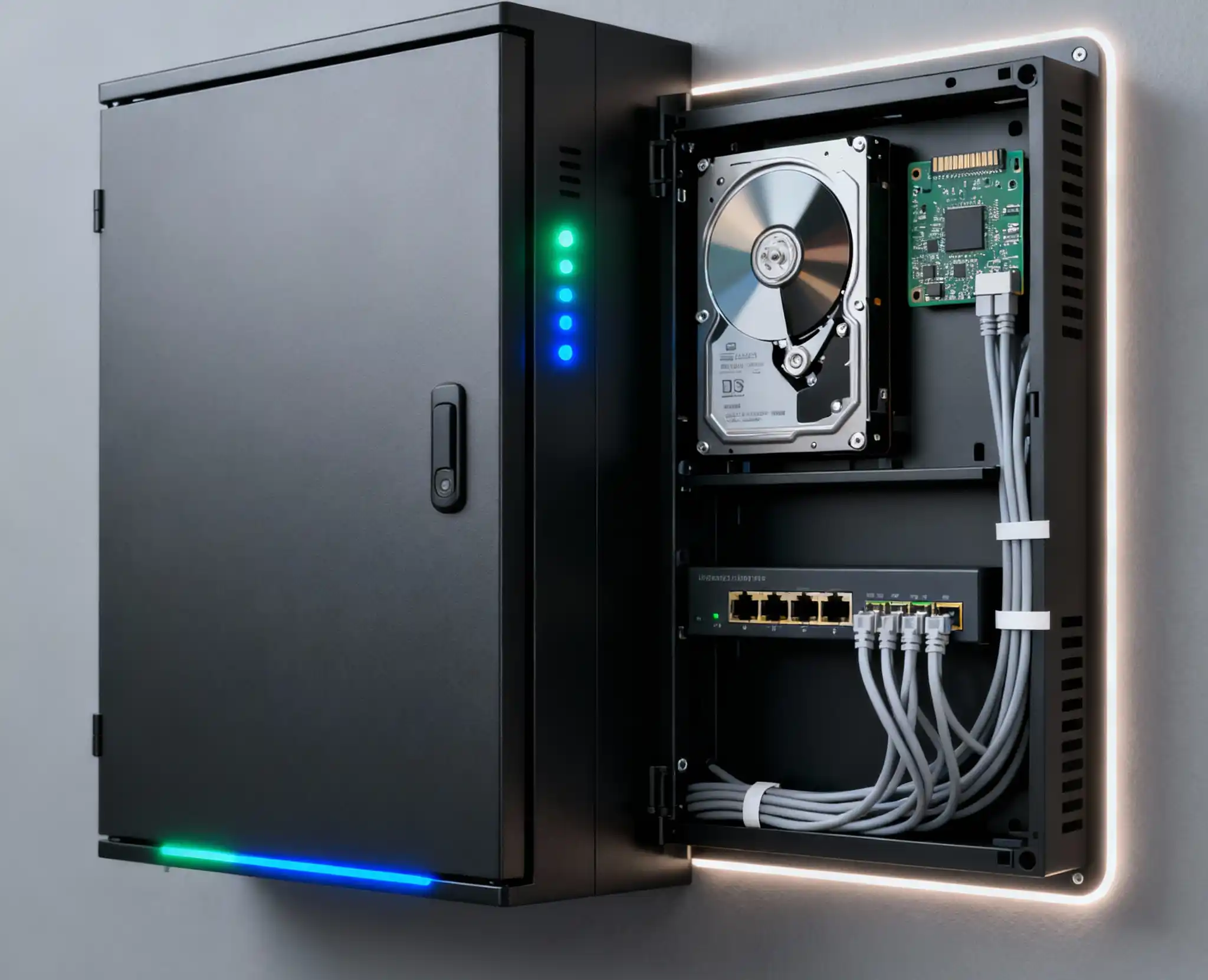

Edge compute wallmount node (retail, clinic, factory cell, branch)

Edge is simple: push logic close to users and sensors, cut round trips, ride thru WAN hiccups. A wallmount chassis becomes a mini data node right in the room. For heavier inference, pair the wall unit with a short-depth server rack pc gehäuse nearby, but lots of branch workloads live happy on the wall.

• Typical payload: uATX/ATX board, small GPU or AI accelerator, NVMe cache, TPM + secure boot, remote KVM.
• Rollout goals: zero-touch imaging, logs to SIEM, readable alerts (for humans, not just robots).
• Where it wins: checkout lanes, radiology rooms, line-side stations, kiosks, pop-up branches.

See more: Rackmount-Gehäuse, Gehäuse für Wandmontage.

Edge compute sizing quick guide

• Depth first. Measure the longest card plus PSU connector sweep; don’t guess.
• Thermals. Bigger, slower fans = less noise and more headroom. Keep exhaust path clear.
• Storage. OS on NVMe; bulk or footage on HDD/SSD. For rough sites, rubber-mounted trays help alot.
• Power. Leave margin for that “one more” capture card or GPU. It wird appear later.
• Mounting. Hit studs, use decent anchors, and leave door swing room (people forget this).
• Noise. In customer areas, define a max dB and pick components to match. Dont ignore noise.

server rack pc case vs wallmount enclosure (when a rack wins)

Sometimes a standard cabinet is the right call. If your build includes deep GPUs, many hot-swap bays, or you already have an MDF/IDF with rails and PDUs, a server rack pc gehäuse is the simple path. Keep wallmount for the satellite nodes, use racks for the core. Your crew gets consistency across SKUs and easier hot-swap.

Compare: Rackmount-Gehäuse.

atx server case for branch or pop-up (short-depth, fast rollouts)

Branch teams love low friction. A compact atx-Server-Gehäuse with short depth slips into shallow cabinets or sits right above the counter, then the wallmount holds the patching, PoE, and the tiny UPS inlet. Ship the same image to every site, keep BOM stable, and your support runbook stays sane.

Prüfen: atx-Server-Gehäuse.

Scenario table: surveillance / low-voltage / edge compute
