You don’t always need a full rack room. Sometimes you just need a tough wall box that holds a board, a switch, maybe a small GPU, and stays out of the way. That’s the 벽걸이 케이스 lane—close to the sensors, quick to service, friendly to tight closets. Below I’ll map real-world surveillance, low-voltage/structured wiring및 edge compute rollouts, with one grab-and-go table and plain tips you can actually use.
Wallmount case for surveillance NVR / PoE / edge analytics
CCTV isn’t only “cameras + hope.” Put compute near the camera cluster, trim backhaul traffic, and keep recording if the WAN coughs. A wallmount chassis beside the patch panel lets you drop in an NVR or a compact 컴퓨터 케이스 서버 with a PoE switch and on-device analytics. Alerts land faster, and footage keeps rolling even during link blips.
- Typical stack: uATX/mini-ITX board, SSD for OS, HDDs for footage, PoE switch, tidy cable guides.
- Why wall, not floor rack: guard shacks, retail back rooms, schools, construction sites—space is tiny, and you want “mount and go.”
- Serviceability: swing-door or front-access panels win; label the uplink and the camera trunks.

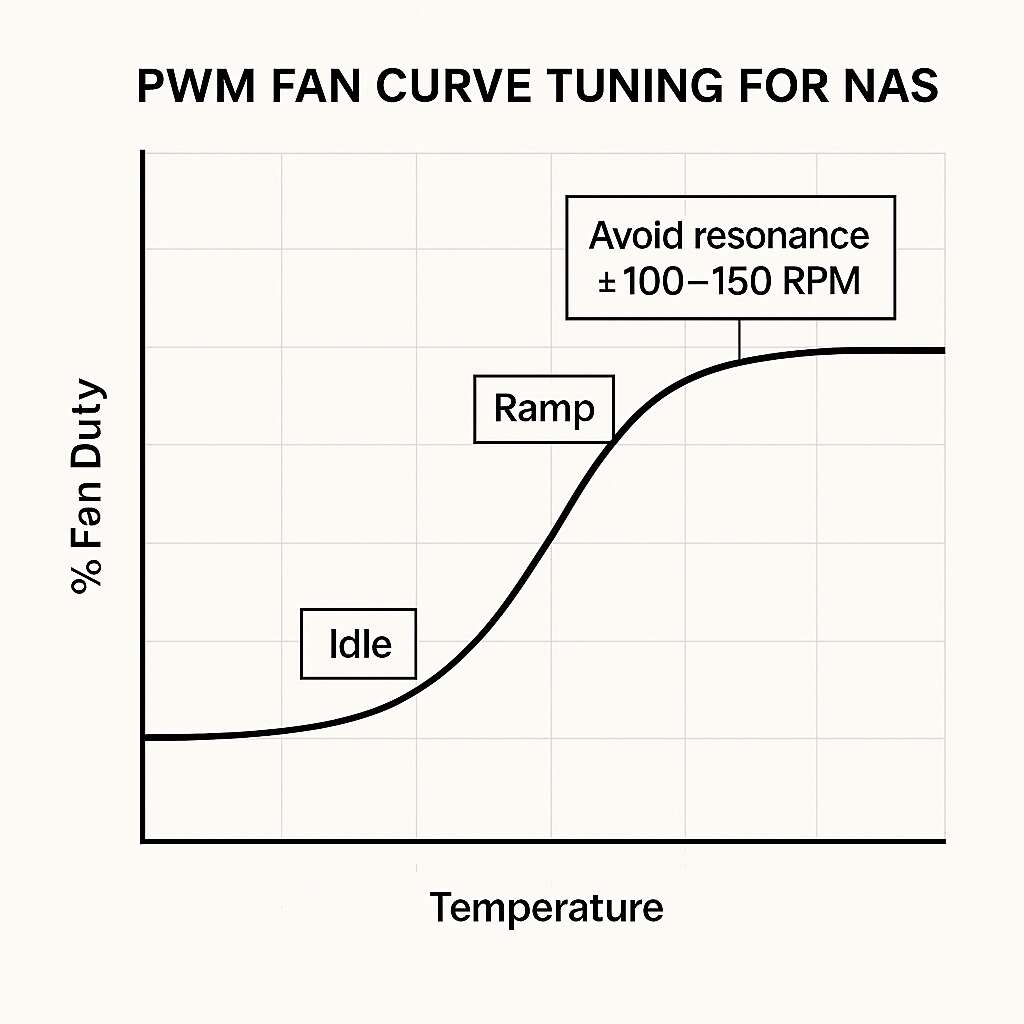

- Quiet hours? Big slow fans beat small loud ones, always.
Useful anchors on your site:
Surveillance deployment checklist (field-friendly)
- Size PoE power with headroom; cameras multiply later, trust me.
- Keep airflow bottom-to-top or front-to-back; don’t choke fans with cables.
- Dust filters for warehouses; check monthly.
- OOB path (LTE stick or mgmt NIC) for “remote hands.”
- Lockable door + tamper screws where public can touch.
- Time sync and retention policy set before go-live, not after.
Low-voltage / structured wiring wallmount enclosure (weak-current closet)
Low-voltage closets beg for order: gateway, short-depth switch, patch panel, controller, maybe an ITX node. A wallmount cabinet keeps the weak-current side isolated and clean, so the electrician and the network tech don’t trip over each other.
- Good fit: smart buildings, MDUs, classrooms, cafés, clinics.
- What to mount: ITX control board, tiny NAS, short-depth switch, cable manager, DIN power (if required).
- Why customers like it: lower MTTR, safer cable handling, simple handover between trades.
Explore onsite categories: ITX 케이스.
Low-voltage wiring notes (the “dont-learn-the-hard-way” bits)
- Separate mains and low-voltage; use proper pass-throughs/grommets.
- Leave a service loop; short leads get yanked and die.
- Patch panel labeling saves hours later; print labels, not marker scribbles.
- QR a tiny run-sheet inside the door (port map, ISP info, site ID).
- Unmanaged is fine only when truly fine; otherwise go managed for VLANs and PoE watch-dogs.
Edge compute wallmount node (retail, clinic, factory cell, branch)
Edge is simple: push logic close to users and sensors, cut round trips, ride thru WAN hiccups. A wallmount chassis becomes a mini data node right in the room. For heavier inference, pair the wall unit with a short-depth 서버 랙 PC 케이스 nearby, but lots of branch workloads live happy on the wall.
- Typical payload: uATX/ATX board, small GPU or AI accelerator, NVMe cache, TPM + secure boot, remote KVM.
- Rollout goals: zero-touch imaging, logs to SIEM, readable alerts (for humans, not just robots).
- Where it wins: checkout lanes, radiology rooms, line-side stations, kiosks, pop-up branches.
Edge compute sizing quick guide
- Depth first. Measure the longest card plus PSU connector sweep; don’t guess.
- Thermals. Bigger, slower fans = less noise and more headroom. Keep exhaust path clear.
- Storage. OS on NVMe; bulk or footage on HDD/SSD. For rough sites, rubber-mounted trays help alot.
- Power. Leave margin for that “one more” capture card or GPU. It will appear later.
- Mounting. Hit studs, use decent anchors, and leave door swing room (people forget this).
- Noise. In customer areas, define a max dB and pick components to match. Dont ignore noise.
server rack pc case vs wallmount enclosure (when a rack wins)
Sometimes a standard cabinet is the right call. If your build includes deep GPUs, many hot-swap bays, or you already have an MDF/IDF with rails and PDUs, a 서버 랙 PC 케이스 is the simple path. Keep wallmount for the satellite nodes, use racks for the core. Your crew gets consistency across SKUs and easier hot-swap.
Compare: 랙마운트 케이스.
atx server case for branch or pop-up (short-depth, fast rollouts)
Branch teams love low friction. A compact ATX 서버 케이스 with short depth slips into shallow cabinets or sits right above the counter, then the wallmount holds the patching, PoE, and the tiny UPS inlet. Ship the same image to every site, keep BOM stable, and your support runbook stays sane.
확인: ATX 서버 케이스.
Scenario table: surveillance / low-voltage / edge compute
| 시나리오 | Pain point (what bites) | Payload in the box | Field checklist | On-site link |
|---|---|---|---|---|
| Surveillance NVR / PoE | WAN flaky, backhaul noisy, alerts slow | NVR or 컴퓨터 케이스 서버, PoE switch, SSD+HDD | PoE headroom, quiet fan curve, lockable door | 벽걸이 케이스 |
| Clinic / branch edge | Latency, privacy rules, broom-closet space | uATX board + small GPU, NVMe cache, mgmt NIC | Secure boot, remote KVM, dust filter | 서버 PC 케이스 |
| Factory cell / line-side | Vibration, dust, short runs to PLCs | Short-depth board + I/O cards | Rubber grommets, threaded inserts, monthly dust check | 벽걸이 케이스 |
| Smart building weak-current | Box sprawl, messy power, no labels | ITX controller, gateway, patch panel | Separate LV/mains, label everything | ITX 케이스 |
| Pop-up retail / events | No rack, no time | 컴팩트 ATX 서버 케이스 or 4-slot wall unit | Image once, ship many; color-code cables | 랙마운트 케이스 |
Why IStoneCase for wallmount + server pc case (OEM/ODM, volume, consistency)
You care about lead time, repeatability, and little tweaks that actually matter: special dust filters, front I/O layouts, different drive cages, brand silk-print, colorways. That’s normal for us. IStoneCase 빌드 GPU server cases, Rackmount, Wallmount, NAS, ITX, plus custom OEM/ODM for bulk buyers and wholesalers. We serve data centers, algorithm centers, enterprises, SMBs, MSPs, research groups, developers—teams who measure uptime and get grumpy when enclosures fight airflow. We ship stable SKUs, predictable thermals, and cable paths that don’t bite fingers.
