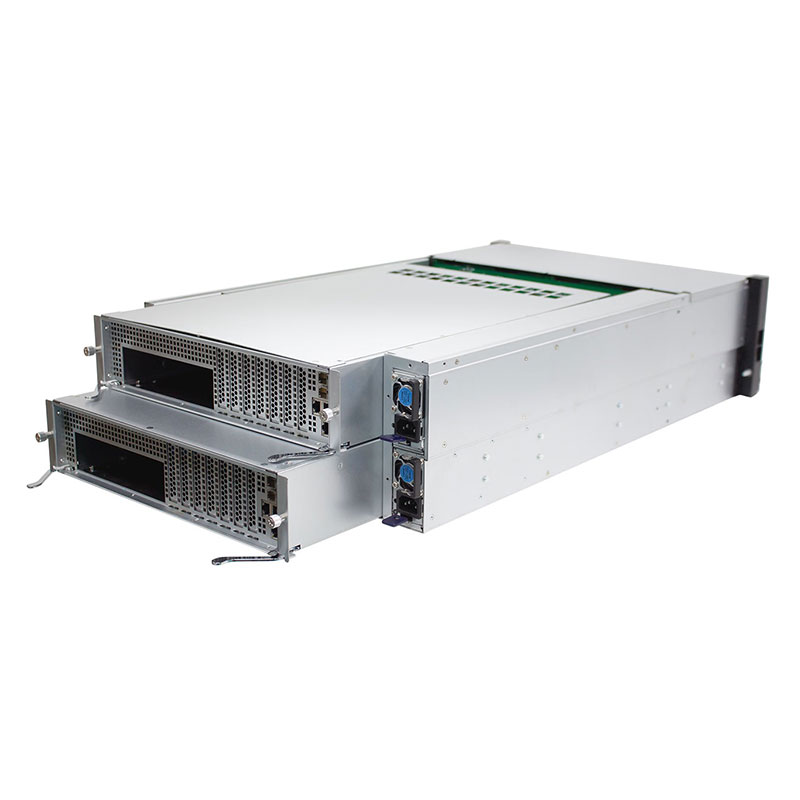

Dual-Node Server Case OCDS5000B-W 2 Controllers 2400TB Capacity
The OCDS5000B-W Dual-Node Server Case offers exceptional scalability with 2 controllers, 2400TB capacity, and high-performance features like RAID support and temperature-controlled fans. Ideal for data centers, cloud storage, and AI applications, this chassis ensures high availability, efficient data management, and reliable performance.
Key Features:
- 4U form factor, 24 bays, and 480 HDD capacity.
- Dual-Node Active-Active controller design.
- Supports RAID 0, 1, 5, 6, 10.
- Write cache mirroring for data protection.
- Multipath management for centralized control.
- Hot-plug fans with temperature regulation.
- OEM/ODM solutions and bulk wholesale options.
- Perfect for data centers, AI, cloud computing, and big data.
Dual-Node Server Case OCDS5000B-W 2 Controllers 2400TB Capacity
| Feature | OCDS5000B-W |
| SCU Form factor | 4U，24 Bays |
| Maximum HDD | 480 |
| Maximum original capacity | 2400TB |
| Number of controllers | 2 |
| Controller mode | Active-Active |
| Memory | 16GB-512GB |
| Write cache | Support write cache mirroring, power failure zero data loss |
| EXP Form factor | 4U，24 Bays |
| Supported storage protocols | FC、 iSCSI、 NFS、CIFS |
| Network Interface | 1/10Gbps Ethernet、8/16Gbps FC |
| Back-end Interface | Four x4 12Gb，SAS3.0 |
| Maximum number of front-end host ports | 8*GE+16*GE/8*10GE/8*FC |
| Ports | 2*VGA/4*USB/2*RS232/2*FE |
| HDD | 1-16TB 3.5inch SATA / SAS HDD/ 1-16TB 2.5inch SAS HDD/ SAS SSD |
| RAID Level | RAID 0、1、5、6、10 |
| RAID features | Supports RAID striping, reconstruction, Delta reconstruction, and automatic delta synchronization. Supports multiple disk media errors, write recovery under read error, and permanent metadata protection for RAID groups |
| Other features | Self-start when power on, power on hard disk one by one, hard disk locate and alarm, every hard disk slot power control, SFF8644 signal enhancement, fan regulation by temperature |
| Snapshots (LUN) | 1024 |
| LUN | 1024 Logical volume |
| A file system | 128TB |
| Data protection | Snapshots ， LUN copy，Remote replication |
| Storage management | Multipath management, centralized device management |
| Hypervisor features | KVM,VMware，XenServer，Hyper-V |
| BBU | Super capacitor or power lithium battery module |
| Fans | 1+1 High power turbofan |
| Power Input | AC 100V~127V/200V~240V; 60Hz/50Hz |
| Power module | 1+1 550W,optional 800W / 1200W |
| Ambient Temperature | 10–35°C (50–95°F) while operating; |
| -40 – 55°C(-40 – 135°F) while in storage, according to the surroundings. | |
| Relative humidity | 10%RH～90％RH |
| Size(W×H×D) | 440mm x 175mm x 680mm |
| Weight (No hard disk) | Gross weight: 31.00kg |
| Net weight: 30.00kg |
Product Overview: Dual-Node Server Case OCDS5000B-W
The Dual-Node Server Case OCDS5000B-W is a high-performance 4U chassis designed for enterprise-level applications requiring both reliability and scalability. Built to handle up to 2400TB of storage capacity, this server case is ideal for environments that demand extensive data processing capabilities, such as data centers, cloud services, and AI computing. Whether you’re working with large datasets in financial services, telecommunications, or research institutions, the OCDS5000B-W provides a powerful and robust solution.
Key Features:
Dual Active-Active Controllers: Ensures maximum uptime and system resilience.
Large Storage Capacity: Accommodates up to 480 hard drives (HDDs), supporting various RAID levels (0, 1, 5, 6, 10), with a maximum storage capacity of 2400TB.
Versatile Connectivity: Supports advanced storage protocols like FC, iSCSI, NFS, and CIFS, making it highly compatible across different network environments.
Efficient Data Management: Features like multipath management, LUN copy, and remote replication make it a preferred choice for enterprise IT infrastructures.
High Availability: Equipped with write cache mirroring, the case ensures no data loss even during power failures.
This Dual-Node Server Case is designed with various industries in mind, such as cloud computing, big data analytics, AI and machine learning, and high-performance computing. Companies involved in OEM/ODM solutions and requiring bulk wholesale purchases will benefit from this system’s flexibility, performance, and scalability. Furthermore, it is an excellent choice for organizations focused on high availability storage solutions.
With a 1+1 redundant power supply, this chassis supports both super capacitors and power lithium battery modules, ensuring minimal downtime. The efficient cooling system, with its hot-plug fans and fan regulation by temperature, makes the system suitable for 24/7 operations in environments that require consistent performance.
Industry Applications:
Data Centers: The high storage capacity and dual-controller setup provide an ideal solution for enterprise-class data management.
Cloud Storage Providers: The scalable design meets the rigorous demands of cloud infrastructures and virtualization services.
AI & Machine Learning: The Dual-Node Server Case is optimized for high-performance computing (HPC) workloads, crucial for AI-driven applications and deep learning tasks.
Telecommunications and Finance: Businesses in these sectors require robust, reliable storage solutions to handle massive amounts of data processing and storage.
At IStoneCase, we offer bulk purchase options for businesses looking to deploy large-scale storage solutions. Whether you need customized storage solutions or reliable bulk wholesale orders, our OEM/ODM services ensure that your infrastructure can be tailored to meet your unique requirements.
