You want wall-mounted gear that installs fast, runs stable, and doesn’t bite you later with rattling panels or thermal choke. That’s the whole point of wallmount server case assembly services—turning loose parts into a clean, reliable server pc case setup that’s ready to hang, power, and go.
TL;DR: start with the right chassis (depth, RU, rails), pre-assemble to reduce MTTR, pack to ISTA 3A/2A, ship on four-way pallets, and anchor to structure with proper hardware. Simple idea, lots of moving pieces.
Wallmount server case assembly services: from spec to “ready-to-mount”
Aim: shorten deployment time and reduce on-site surprises. We do kitting, pre-wiring, cable labeling, basic burn-in, and wall hardware prep so the computer case server just… works. Sometimes it dont if the depth is off or the anchor is wrong, so we check that too.
Core steps:
- Fit check (EIA-310): RU spacing, 19″ width, and usable depth validate against your boards/PSUs/rails.
- Pre-integration: install PSU, fans (target airflow CFM), filters, PDUs, cable trays, and cage nuts.
- Thermal & noise sanity: fan curves, intake/exhaust path, anti-vibration washers so the wall doesn’t become a speaker.
- Labeling: front/back I/O, PoE, WAN/LAN, DCIM tags.
- Mounting kit prep: standoff map, anchor type (stud, concrete, seismic), torque spec cheat-sheet.
Business value: less truck rolls, faster cutover, predictable SLA, and lower MTTR after day-2.
Assembly + kitting for server pc case (wallmount)
When you assemble wall units, the constraints are different from rackmount. You’re fighting gravity, shear load on the anchors, and panel resonance.
- Load plan: heavy items low, short rails where possible, keep center of mass tight to the wall.
- Cable management: service loop, 90° power plugs, strain relief on vertical runs.
- Thermal lanes: front-to-back if possible; if side intake, leave negative space around intakes.
- Serviceability: swing-frame hinges or quick-release doors where SKU allows—less time on the ladder.
Good to know: many customers ask for ATX server case compatibility in wall chassis. We’ll map standoffs and I/O shield to keep it tidy, but do mind PSU length and GPU thickness if you’re running inference at the edge.
Logistics & installation for computer case server (wallmount)
Wall gear gets hurt in transit more often than rack gear. Thin panels + long lever arm = more shocks.
- Packaging standard: parcel/small-pack → ISTA 3A; LTL/palletized → ISTA 2A equivalents.
- Pallet rules: four-way entry, no overhang, edge protectors, cross-strap + wrap to pallet deck.
- Indicators: tilt/shock tags for claim evidence; not a gimmick—saves arguments.
- Anchoring: studs or concrete with the right anchors (no hollow-wall anchors for heavy builds, please).
- Seismic: in quake zones, add diagonal braces or seismic kit. It just work better and safer.
Real-world scenarios (why assembly services matter)
- Edge AI closet (retail): compact server rack pc case on a back-room wall, GPU for video analytics, PoE switch, UPS. We pre-wire and ship with labeled ports; onsite tech mounts, plugs WAN and power, done.
- Clinic hallway cabinet (healthcare): locking door, quiet fan profile, EMI grommets, filtered intake. Clean cable dressing so nurses don’t snag.
- Factory mezzanine (OT/IT merge): dust filters + positive pressure; steel anchors into structural beam; swing-frame for faster sensor swap.
- Branch office refresh: standardized build across 30+ sites. Pre-kitted ATX server case mainboard, NVMe boot mirror, and DCIM USB probe, then blanket-wrap delivery to avoid crate tear-downs.
Product categories that map cleanly to assembly workflows
Wallmount Case
General wall enclosures for SMB/enterprise edge. Good for mixed workloads and tidy cable routes. If you’re picking a server rack pc case for tight rooms, start here.
Wallmount Case 2 Slots
Lean nodes, thin clients, or small firewalls. Nice for “router + mini-server” pairs. Lightweight, low shear on anchors.

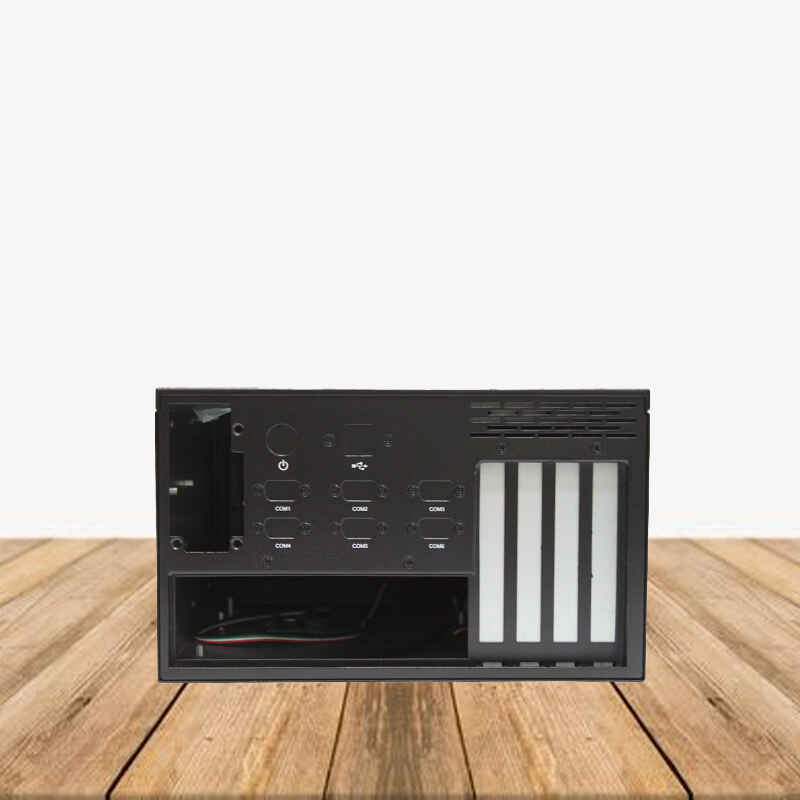

Wallmount Case 4 Slots
Sweet spot for branch kits: server + switch + PDU + patch panel. Keeps the center of mass reasonable, installer friendly.

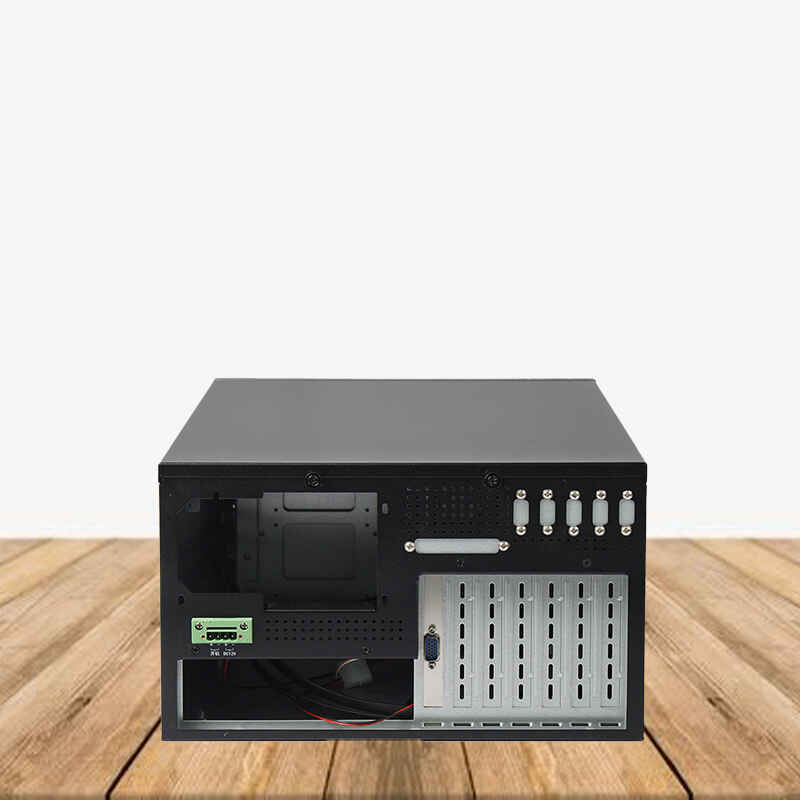

Wallmount Case 6 Slots
Adds room for UPS or GPU accelerator. Watch total weight—use stud anchors and confirm torque spec. Great for NVR + AI infer.

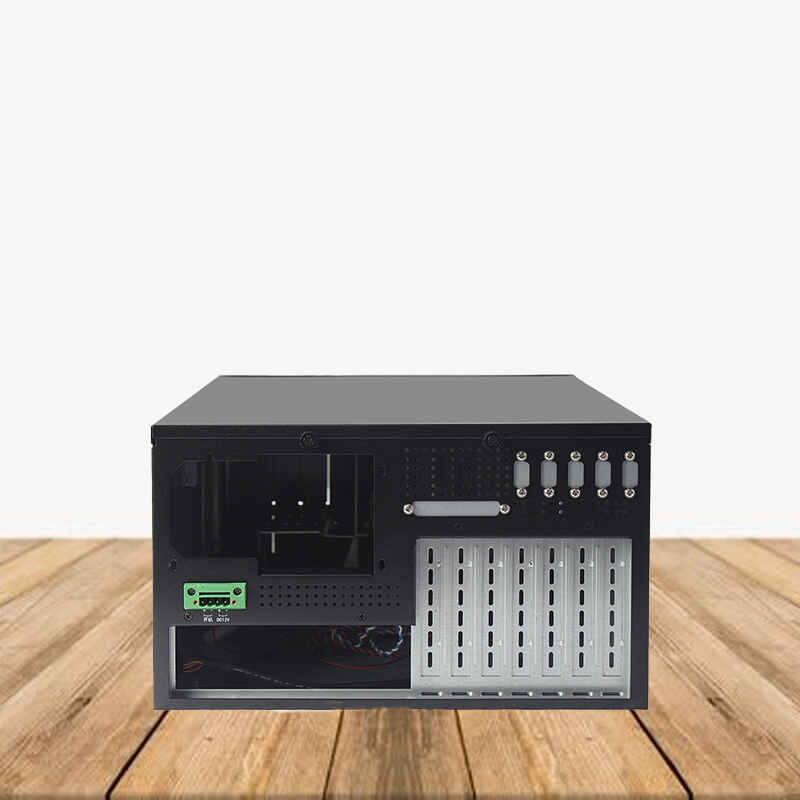

Wallmount Case 7 Slots
High-density wall stack—plan airflow and hinge access. Pre-integration really pays off here to avoid ladder-time spaghetti.
Customization Server Chassis Service
OEM/ODM tweaks: depth, fan wall layouts, cable passthroughs, quick-release doors, special rails, badge/finish. Useful when you need “the same exact thing, 100 sites.”
Argument table (standards-backed, field-tested)
| Claim (what we do) | Why it matters | Where it applies | Evidence / Source (industry) |
|---|---|---|---|
| Match packaging to route: ISTA 3A for parcel, ISTA 2A for LTL | Simulates drop, random vibration, compression; fewer DOA | Any wall chassis shipped single-box or on pallet | ISTA 3A/2A test methods (industry standards) |
| Load from bottom up; keep build ≤ ~22U visual height for stability | Lowers moment on anchors; less wobble and panel buzz | Pre-integrated wall frames | Common cabinet handling guides; EIA alignment practice |
| Four-way pallet entry; no overhang; edge protectors + cross-strap | Prevents forklift damage & corner crush | LTL moves | NMFTA palletization guidance (industry practice) |
| Verify EIA-310 and usable depth before build | Ensures boards/rails/PDUs actually fit | All assemblies | EIA-310 (rack fitting spec) |
| Choose skilled 3PL with blanket-wrap for pre-built cabinets | Reduces unpack/repack shocks; better inside delivery | Offices, hospitals, highrise | Data-center/AV logistics best practice |
| Anchor into studs or concrete; add seismic braces if required | Real load path; lowers fall risk | Seismic regions, heavy builds | Contractor codes & seismic anchoring practice |
Note: We reference standards and common industry practices here; no external links needed. Your compliance doc can list exact clauses if you want.
Quick checklist before you lock your server rack pc case
- Depth math: GPU length + cable bend radius + front fan block.
- Airflow: clear intake, dust filter plan, exhaust path.
- Noise: decouple fans, rubber grommets; wall acts like a soundboard otherwise and gets noisy.
- Power: PDU orientation, UPS clearance, separate circuit if required.
- Security: lockable door, tamper screws, cable cover.
- Service: hinge/swing access, label everything a human can read on a ladder.
Why IStoneCase (and how we slot into your ops)
IStoneCase is focused on GPU/Server Case and Storage Chassis OEM/ODM—from rackmount to wallmount to ITX. Our assembly service is built for teams that need repeatable builds at scale: data centers, algorithm labs, enterprises, MSPs, research groups, even makers who ship dozens of edge nodes. We tune for performance, durability, and day-2 ops. No fluff, just gear that holds up.
- Need a compact server pc case that still cools a mid-range GPU? We’ll pick fan geometry and grill pattern accordingly.
- Want a neat atx server case for edge infer? We pre-route EPS/PCIe power, test boot, and tag the cables.
- Doing a computer case server refresh across branches? We standardize kitting and serials, then ship with the same pallet SOP.
Bonus: many customers like mixing a wallmount + small NAS device for local backup. We can kit both and ship together, less headache.
Example build map (what your tech sees on site)
- Front: swing door with washable filter; badge and asset tag pre-applied.
- Inside: board mounted, CPU cooler torqued, RAM seated, NVMe mirrored, cables tied on a vertical spine, spare cage nuts taped to the inside panel.
- Back/side: labeled drops (WAN/LAN/PoE), PDU up top, UPS low.
- Mounting: stud finder marks, anchor size printed, “hold-here” grip labels.
- Docs: one-page quickstart, QR to longer guide, SLA contact.
Kinda simple, but this save real time.
Suggested builds with links for your shortlist
- Browse the base Wallmount Case first to lock materials and door style.
- Pick small branch kits in Wallmount Case 2 Slots.
- For switch + server + PDU + panel, see Wallmount Case 4 Slots.
- Need UPS or GPU space? Wallmount Case 6 Slots is the move.
- High-density edge? Wallmount Case 7 Slots but mind anchors & airflow.
- If you need depth tweaks or special rails, go Customization Server Chassis Service.
Comparison snapshot (assembly scope vs. DIY)
| Item | DIY wall mount | IStoneCase assembly service |
|---|---|---|
| Fit & EIA-310 check | You measure; risk of re-order | Verified fit, depth & rail map |
| Kitting & labeling | Varies per tech | Standardized labels & service loops |
| Thermal/noise tuning | Trial-and-error | Pre-set curves + isolation washers |
| Packaging | Basic box | Standard-based (ISTA 3A/2A route) |
| Freight & inside delivery | Generic LTL | Pallet SOP + blanket-wrap option |
| Mounting doc | Ad-hoc | Torque spec, anchor guide, QR help |
Final word
Wallmount isn’t just “a small rack on a wall.” It’s a different beast. If you want your server rack pc case to survive shipping, hang straight, run cool, and be easy to service, assembly services pay for themselves in fewer headaches. With IStoneCase, you get durable hardware, OEM/ODM options, and a workflow built around real installers—not lab bench fantasies. You’ll gonna like that when the go-live window is 2 hours and the ladder is wobbly.
